3048348

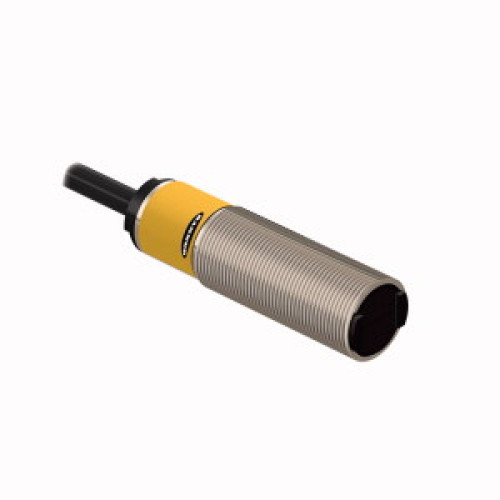

EZ-BEAM M18 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary NPN, 2 m (6.5 ft) Cable

Manufacturer's No: M18SN6R     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary NPN, 2 m (6.5 ft) Cable

Availability On Request

£94.37
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Metal Housing
  • Selectable light/dark operation
  • Light operation with alarm function

Read more

  • NPN switching output, changeover


Product

Manufacturer Material ID -
M18SN6R
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
59.2 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Turck Banner

Availability On Request

£94.37
