3048666

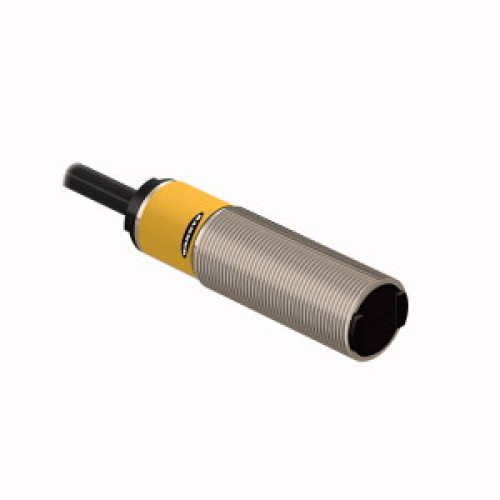

EZ-BEAM M18 Series: Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Manufacturer's No: M18SP6DL     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Availability On Request

£105.25
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Cable Length: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Metal housing
  • Stainless steel housing
  • PNP switching output

Read more

  • Changeover


Product

Manufacturer Material ID -
M18SP6DL
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

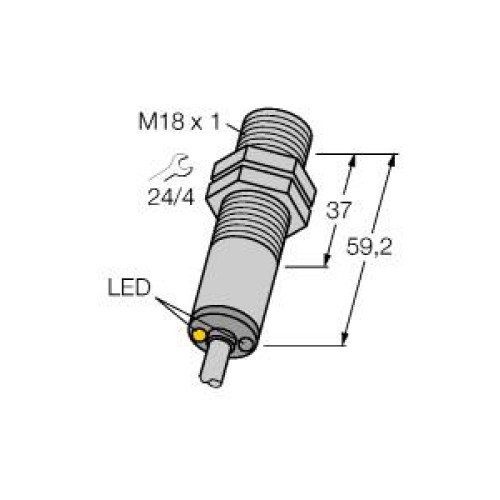

Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
59.2 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

£105.25
