3048670

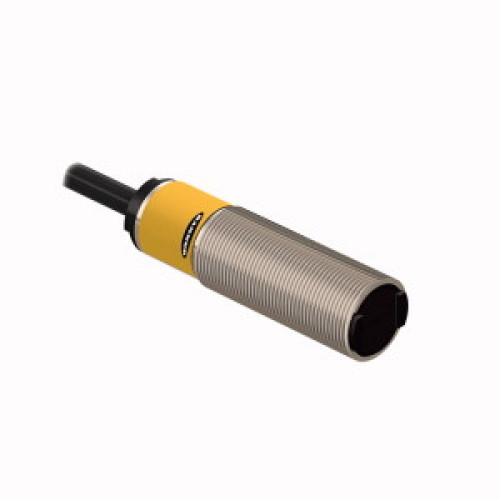

EZ-BEAM M18 Series: Fixed Field, Range: 50, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Manufacturer's No: M18SP6FF50     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Fixed Field, Range: 50, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Availability On Request

£167.86
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 50 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • Durable metal housing


Product

Manufacturer Material ID -
M18SP6FF50
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
65 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

£167.86
