3048654

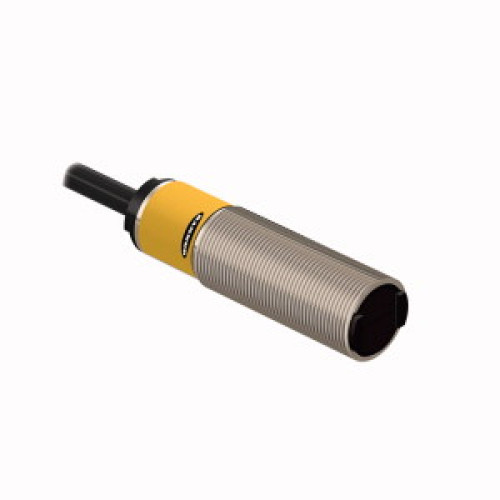

EZ-BEAM M18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Manufacturer's No: M18SP6L     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Availability On Request

£101.62
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Metal Housing
  • Selectable light/dark operation
  • Light operation with alarm function

Read more

  • PNP switching output, changeover


Product

Manufacturer Material ID -
M18SP6L
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
59.2 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£101.62
