48659 {B}

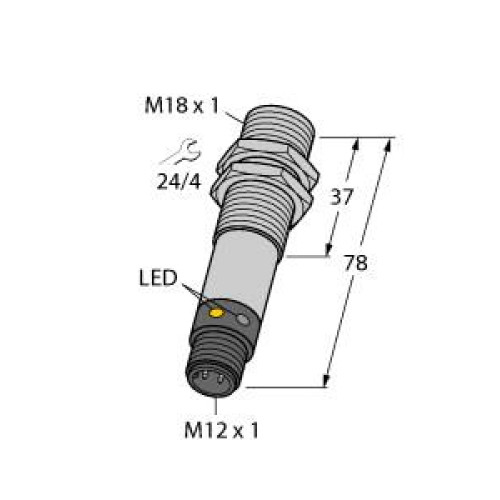

EZ-BEAM M18 Series: Polarized Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: M18SP6LPQ     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Polarized Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Availability Available to order

£156.08
  • Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter
  • Max. range: 2000 mm
  • Operating voltage: 10-30 VDC
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C
  • Metal housing
  • Selectable light/dark operation or light operation with alarm function
  • M12 × 1 male connector, 4-pin
  • PNP switching output, changeover


Product

Manufacturer Material ID -
M18SP6LPQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
78 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability Available to order

£156.08
