76327 {B}

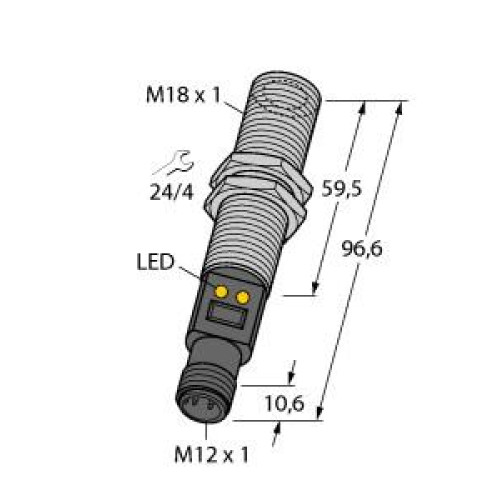

M18T Series: Temperature Sensor, 14: 1 Germanium Lens, Output: Analog 4-20 mA, PNP Alarm, 5-pin M12 Integral QD

Manufacturer's No: M18TIP14Q     Manufacturer: Turck Banner
M18T Series: Temperature Sensor, 14: 1 Germanium Lens, Output: Analog 4-20 mA, PNP Alarm, 5-pin M12 Integral QD

Availability Available to order

£515.63
  • Temperature sensor with Passive Infrared Sensor
  • Operating voltage: 12-30 VDC
  • Analog output: 4-20 mA
  • D:S ratio: 14:1
  • Measuring range: 0-300 °C
  • PNP alarm output switches at 20 mA limit
  • Connection via M12 x 1 connector
  • Measuring range adjustable via teach-in


Product

Manufacturer Material ID -
M18TIP14Q
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Max. operation temperature -
70 Degrees celsius
Rated control supply voltage at DC -
12 Volt
Type of electric connection -
Other
Turck Banner

Availability Available to order

£515.63
