72507 {B}

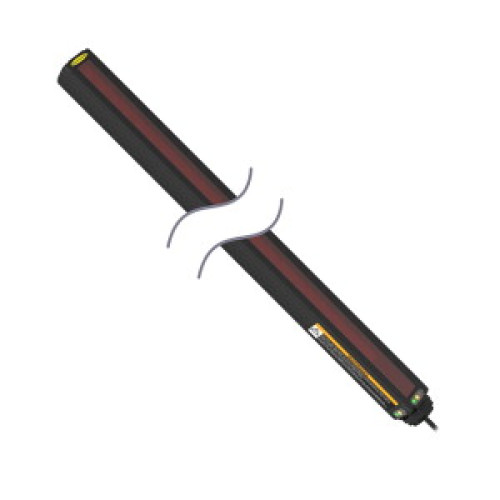

MAE7216Q 16CH 2-STICK MA EMITTER

Manufacturer's No: MAE7216Q     Manufacturer: Turck Banner
MAE7216Q 16CH 2-STICK MA EMITTER

Availability Available to order

£1,184.53
  • Light screen with a max. range of 13500 mm
  • Emitter operating voltage: 16-30 VDC
  • Cable length: 0.15 m with a 150 mm cable and male connector (M12 × 1, 8-pin)
  • Scan field (Y): 1819 mm
  • Resolution: 19 mm
  • Range: 13.5 m


Product

Manufacturer Material ID -
MAE7216Q
Net Weight -
3.22kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Height of sensor -
1908 Millimetre
Length of sensor -
38.1 Millimetre
Reaction time -
54.2 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
1819 Millimetre
Type of electric connection -
Connector M12
Width sensor -
38.1 Millimetre
Turck Banner

Availability Available to order

£1,184.53
