3040141

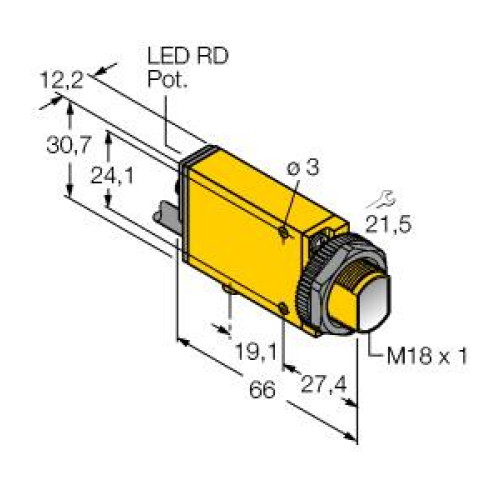

MINI-BEAM NAMUR: Emitter, Range: 6 m, Input: 5-15 V dc, Output: Not Applicable NAMUR, 2 m (6.5 ft) Cable

Manufacturer's No: MI9E     Manufacturer: Turck Banner
MINI-BEAM NAMUR: Emitter, Range: 6 m, Input: 5-15 V dc, Output: Not Applicable NAMUR, 2 m (6.5 ft) Cable

Availability On Request

£105.25
  • Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 5-15 VDC
  • Max. Range: 6000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • ATEX Category: II 1 G, Ex Zone 0


Product

Manufacturer Material ID -
MI9E
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
66 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
Turck Banner

Availability On Request

£105.25
