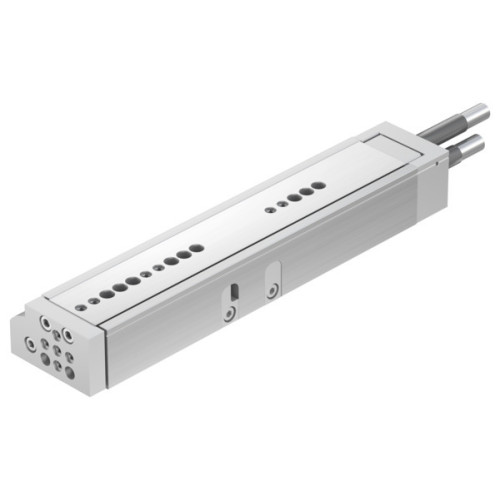

DGSL-16-150-Y3A Mini slide

Manufacturer's No: DGSL-16-150-Y3A     Manufacturer: Festo
DGSL-16-150-Y3A Mini slide

Availability Back Order

£1,196.89
  • Mini slide DGSL-16-150-Y3A for precise position sensing
  • Stroke: 150 mm
  • Highly accurate ball-cage guide with hydraulic shock absorbers on both sides
  • Repetition accuracy: ±0.01 mm
  • Piston diameter: 20 mm
  • Operating pressure: 0.1 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Progressive shock absorber cushioning at both ends
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress

Read more

  • Cleanroom class: Class 7 according to ISO 14644-1
  • Max. force: Fy and Fz - 2900 N; Mx, My, and Mz - 50 NM, 43 NM, 43 NM respectively
  • Moving mass: 910 g; Product weight: 2102 g
  • Material: Cover and housing - Wrought aluminium alloy; Seals - HNBR; Piston rod - High-alloy stainless steel
  • Mounting: With through-hole; Pneumatic connection: M5
  • RoHS-compliant materials
  • Position detection via proximity switch
  • Operating mode: Yoke
  • Optional mounting position
  • Symbol: 991263

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order

Others



Product

Manufacturer Material ID -
DGSL-16-150-Y3A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Degree of protection (IP) -
UN
Width sensor -
- Millimetre
Length of sensor -
- Millimetre
Detection power for test bodies -
14 Millimetre
Thumbnail of product picture -
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
Other
Detection capability for test bodies -
14 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
1100 Millimetre
Operation agent-safety class -
Safety class 3
Resolution of the light curtain -
14 Millimetre
Safety field height -
900 Millimetre
Scope of delivery of the one-way system -
Transmitter
Transmission range of the safety field -
4.8 Metre
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
Other
Voltage type -
DC
Wavelength of the sensor -
940 Nanometre
With beam coding -
