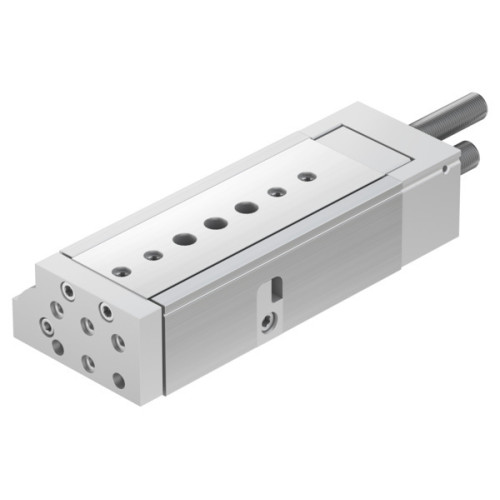

DGSL-20-80-P1A Mini slide

Manufacturer's No: DGSL-20-80-P1A     Manufacturer: Festo
DGSL-20-80-P1A Mini slide

Availability Back Order

£899.57
  • Mini slide DGSL-20-80-P1A for precise position sensing
  • Stroke: 80 mm
  • Highly accurate ball-cage guide with very high repetition accuracy
  • Adjustable end position range: Front 50.5 mm, Rear 49.5 mm
  • Piston diameter: 25 mm
  • Operating mode: Yoke
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa to 8 bar

Read more

  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting operation
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class: 0 (No corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.2 Nm
  • Max. force: Fy 4032 N, Fz 4032 N
  • Max. moment: Mx 75 Nm, My 50 Nm, Mz 50 Nm
  • Theoretical force at 0.6 MPa: Return stroke 247 N, Advance stroke 295 N
  • Moving mass: 998 g
  • Product weight: 2449 g
  • Pneumatic connection: G1/8
  • Material: Cover and housing - Wrought aluminium alloy, Seals - HNBR, Piston rod - High-alloy stainless steel
  • RoHS-compliant materials
  • Type of mounting: With through-hole
  • Alternative connections as per product drawing
