66501000

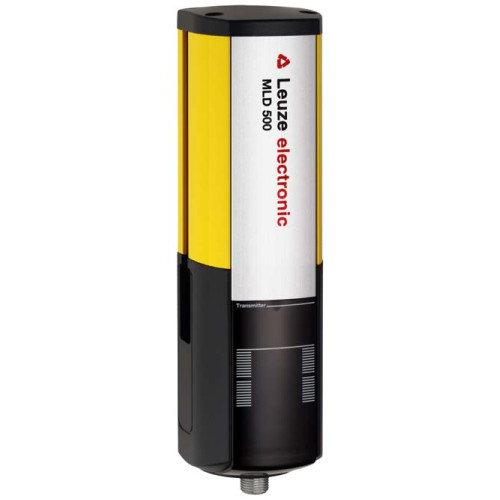

The Single beam safety device transmitter from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Operating range: 0,5 ... 70 m; Light so

Manufacturer's No: MLD500-T1     Manufacturer: Leuze
The Single beam safety device transmitter from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Operating range: 0,5 ... 70 m; Light source: LED, Infrared; Supply voltage: 24 V, DC, -20 ... 20 %; Connect

Availability Back Order

£270.00
  • Type: 4, IEC/EN 61496
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1:2008
  • Category: 4, EN ISO 13849:2008
  • Operating range: 0.5 to 70 m
  • Light source: LED, Infrared
  • Supply voltage: 24 V DC, -20% to +20%
  • Connection: Connector, M12, Metal, 5-pin
  • Design: Cubic
  • Dimensions: 52 mm x 193 mm x 64.7 mm

Accessories

Others



Product

Manufacturer Material ID -
MLD500-T1
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Diameter -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Scope of delivery of the one-way system -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Thumbnail of product picture -
Ambient temperature -
-30 Degrees celsius
Construction type housing -
Cubic
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
193 Millimetre
Length -
64.7 Millimetre
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Operation agent-safety class -
Safety class 3
Transmission range of the safety field -
70 Metre
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Wavelength of the sensor -
850 Nanometre
Width -
52 Millimetre
Leuze

Availability Back Order

£270.00
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
