547934

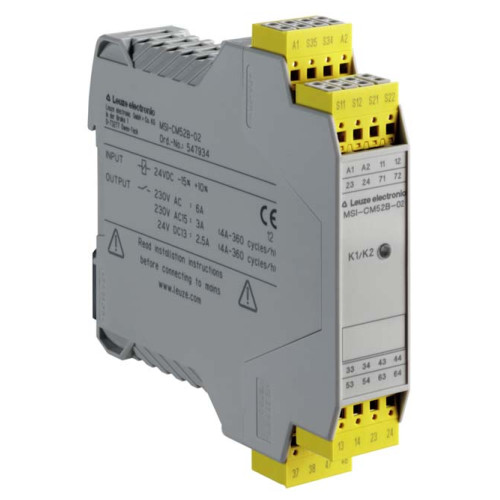

The Safety relay from . SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0,

Manufacturer's No: MSI-CM52B-02     Manufacturer: Leuze
The Safety relay from . SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Connection: Spring-cage terminal; Dimensions: 22,5

Availability Back Order

£215.00
The Safety relay from . SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Connection: Spring-cage terminal; Dimensions: 22,5 mm x 99 mm x 114,5 mm; Ambient temperature, operation: -


Product

Manufacturer Material ID -
MSI-CM52B-02
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
UNSPSC -
39122200

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, undelayed, with contact -
-
Number of outputs, safety related, delayed, with contact -
-
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, signalling function, undelayed, with contact -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
With approval for T‹V -
Voltage type for actuating -
UN
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Width -
22.5 Millimetre
Model -
Basic device
Height -
99 Millimetre
Depth -
114.5 Millimetre
With approval according to UL -
With start input -
With feedback circuit -
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, signalling function, delayed, semiconductors -
0
Type of electric connection -
Spring clamp connection
Rail mounting possible -
Type of safety acc. IEC 61496-1 -
None
Suitable for monitoring of optoelectronic protection equipment -
Performance level acc. to EN ISO 13849-1 -
Level e
Stop category acc. to IEC 60204 -
0
Evaluation inputs -
Other
SIL according to IEC 61508 -
3
With approval for TÜV -
Leuze

Availability Back Order

£215.00
