Safety relay Functions: Periodic function test, Start/restart interlock (RES), selectable, Contactor monitoring (EDM), selectable,

Manufacturer's No: MSI-TR1B-01     Manufacturer: Leuze
Safety relay Functions: Periodic function test, Start/restart interlock (RES), selectable, Contactor monitoring (EDM), selectable, "Error" signal output, "Safety ON" signal output; Restart: Automatic

Availability Back Order

£214.00
  • Application: Evaluation unit for type 2 single beam safety devices in accordance with IEC/EN 61496
  • Functions: Periodic function test, "Error" signal output, "Safety ON" signal output, Contactor monitoring (EDM), Start/restart interlock (RES)
  • Type: Type 2, IEC/EN 61496
  • SIL: SIL 1, IEC 61508
  • Performance Level (PL): PL c, EN ISO 13849-1
  • Category: Category 2, EN ISO 13849-1
  • Number of switching inputs: 4 pieces
  • Number of safety-related switching outputs (OSSDs): 2 pieces
  • Number of switching outputs: 3 pieces
  • Safety-related switching output 1: Relay, NO

Read more

  • Safety-related switching output 2: Relay, NO
  • Switching output 1: Transistor, PNP
  • Response time: 20 ms
  • Sensor response time on test request: 0.5 - 60 ms
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 99 mm x 114.1 mm
  • Ambient temperature, operation: -30°C to 60°C
  • Certifications: TÜV Süd, TÜV Rheinland US


Product

Manufacturer Material ID -
MSI-TR1B-01
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
With approval for T‹V -
Stop category acc. IEC 60204 -
UN
Category according to EN 954-1 -
2
Performance level acc. EN ISO 13849-1 -
Level c
Voltage type for actuating -
DC
With approval for TÜV -
Depth -
114.1 Millimetre
Evaluation inputs -
Other
Height -
99 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
2
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Operating voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
None
Power consumption -
4.8 Watt
Rail mounting possible -
Release-delay -
0.02 Second
SIL according to IEC 61508 -
1
Stop category acc. to IEC 60204 -
Other
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage DC -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
2
Voltage type (operating voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -

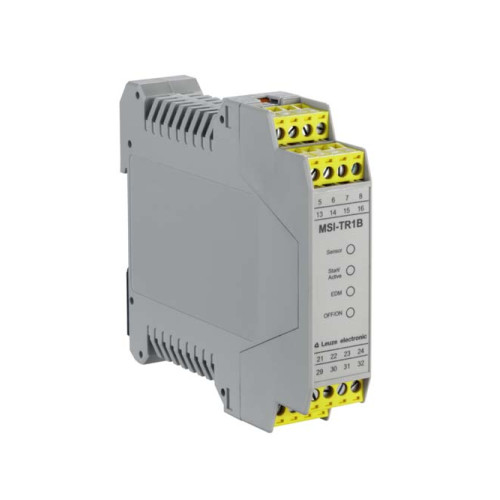

Thumbnail of product picture -
