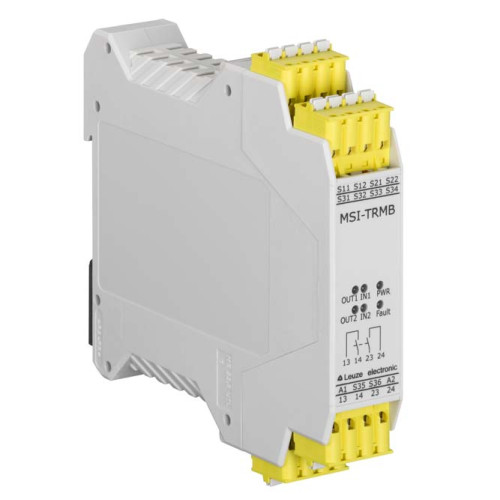

The Safety relay from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): Up to and including e, EN ISO 13849-1; C

Manufacturer's No: MSI-TRMB-02     Manufacturer: Leuze
The Safety relay from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): Up to and including e, EN ISO 13849-1; Category: 4, EN ISO 13849; Response time: 30 ms; Sensor response time

Availability Back Order

£282.00
  • Application: Evaluation unit for type 4 single beam safety devices in accordance with IEC/EN 61496
  • Functions: Start/restart interlock (RES), Contactor monitoring (EDM), Periodic function test
  • Restart: Automatic, Manual
  • Type: 4, IEC/EN 61496
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Category: 4, EN ISO 13849-1
  • Number of safety-related switching inputs: 2 Pieces
  • Number of switching inputs: 2 Pieces
  • Number of safety-related switching outputs (OSSDs): 2 Pieces

Read more

  • Number of switching outputs: 3 Pieces
  • Safety-related switching output 1: Relay, NO
  • Safety-related switching output 2: Relay, NO
  • Switching output 1: Transistor, PNP
  • Response time: 130 ms
  • Sensor response time on test request: 0.5 - 8.5 ms
  • Connection: Spring-cage terminal
  • Dimension: 22.5 mm x 111 mm x 114.1 mm
  • Ambient temperature, operation: -25 to 55 °C
  • Certifications: c UL US


Product

Manufacturer Material ID -
MSI-TRMB-02
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
UNSPSC -
39122200

Technical Specification

Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Stop category acc. IEC 60204 -
UN
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Voltage type for actuating -
DC
Thumbnail of product picture -
Depth -
114.1 Millimetre
Evaluation inputs -
Other
Height -
111 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
2
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Operating voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Power consumption -
3 Watt
Rail mounting possible -
Release-delay -
0.13 Second
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
Other
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage DC -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Spring clamp connection
Type of safety acc. IEC 61496-1 -
4
Voltage type (operating voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -
