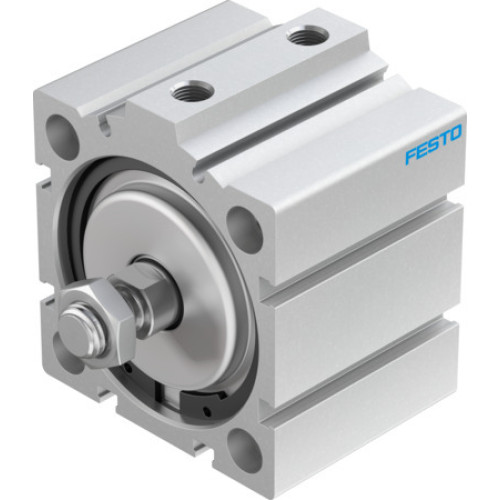

ADVC-63-20-A-P Short-stroke cylinder

Manufacturer's No: ADVC-63-20-A-P     Manufacturer: Festo
ADVC-63-20-A-P Short-stroke cylinder

Availability Available to order

£180.875
  • Short-stroke cylinder ADVC-63-20-A-P
  • Stroke: 20 mm
  • Piston diameter: 63 mm
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 0.06 MPa, 1 MPa, 0.6 bar, 10 bar, 8.7 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1750 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1870 N
  • Moving mass: 186 g, for 0 mm stroke: 162 g, additional per 10 mm stroke: 16 g
  • Product weight: 704 g, for 0 mm stroke: 578 g, additional per 10 mm stroke: 80 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: G1/8
  • Material: Cover - Wrought aluminium alloy, anodised; Seals - NBR, TPE-U(PU); Housing - Wrought aluminium alloy, anodised; Piston rod - High-alloy steel


Product

Manufacturer Material ID -
ADVC-63-20-A-P
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Coating housing -
UN
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Max. output current at protected output -
- Milliampere
Supply voltage -
- Volt
Category according to EN 954-1 -
UN
Type of actuation -
UN
Type of interface -
UN
Diameter sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
SIL according to IEC 61508 -
UN
Material housing -
Other
Type of switching output -
Two-wire
Voltage type -
AC/DC
Housing material -
Other
Switching distance -
2 Millimetre
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Construction type housing -
Cuboid
Mechanical mounting condition for sensor -
Concise
Width sensor -
12 Millimetre
Height of sensor -
40 Millimetre
Length of sensor -
26 Millimetre
