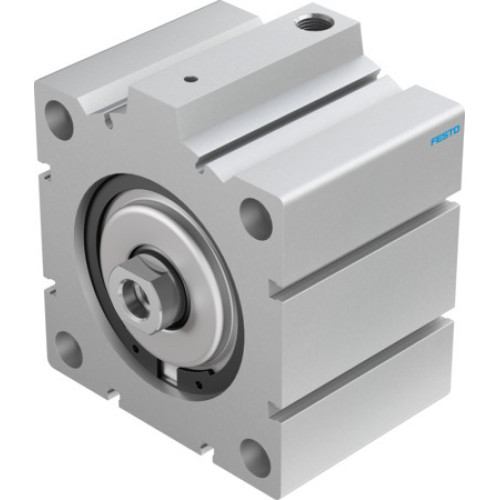

AEVC-100-25-I-P-A Short-stroke cylinder

Manufacturer's No: AEVC-100-25-I-P-A     Manufacturer: Festo
AEVC-100-25-I-P-A Short-stroke cylinder

Availability Available to order

£336.45
  • Short-stroke cylinder AEVC-100-25-I-P-A for proximity sensing
  • Stroke: 25 mm
  • Piston diameter: 100 mm
  • Spring return force when retracted: 140 N
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi) in advance stroke: 4503 N
  • Moving mass: 604 g
  • Product weight: 2250 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: G1/4
  • Material cover: Wrought aluminium alloy, anodised
  • Material seals: TPE-U(PU)
  • Material housing: Wrought aluminium alloy, anodised
  • Material piston rod: High-alloy steel


Product

Manufacturer Material ID -
AEVC-100-25-I-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Max. output current at protected output -
- Milliampere
Category according to EN 954-1 -
UN
Type of interface -
UN
Diameter sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Plastic
Construction type housing -
Cuboid
Coating housing -
Other
Height of sensor -
33.5 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
36 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
20 Volt
Switching distance -
3 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Voltage type -
AC/DC
Width sensor -
65 Millimetre
