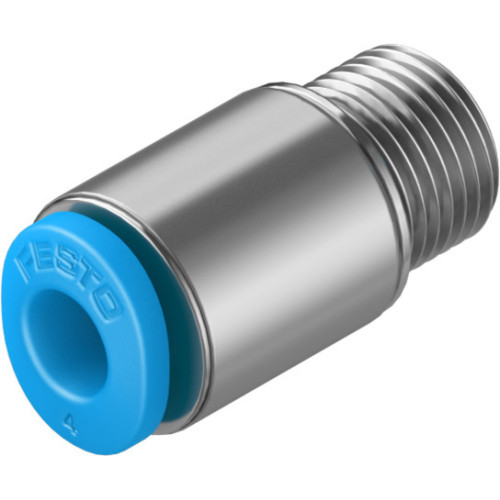

QSM-M7-3/16-I-U-M Push-in fitting

Manufacturer's No: QSM-M7-3/16-I-U-M     Manufacturer: Festo
QSM-M7-3/16-I-U-M Push-in fitting

Availability Available to order

£2.23
  • Push-in fitting QSM-M7-3/16-I-U-M from the Mini series
  • Straight design with internal hexagon and male thread M7
  • For tubing with an outer diameter of 3/16 in
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi)
  • Suitable for compressed air per ISO 8573-1:2010 [7:-:-], lubricated operation possible
  • Low corrosion stress resistance (CRC: 1)
  • Temperature range: 0°C to 60°C (32°F to 140°F)
  • Nominal torque: 3.35 ft-lb with ± 20% tolerance
  • Weight: 5.897 oz
  • Materials: Brass housing, nickel-plated; POM release ring; NBR tubing seal; High-alloy stainless steel tubing clamp component

Read more

  • RoHS-compliant; grey release ring color
  • Mounting: Internal hexagon, size 3 mm
  • Packaging quantity: 1 piece


Product

Manufacturer Material ID -
QSM-M7-3/16-I-U-M
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
JP
UNSPSC -
41111926

Technical Specification

Height of sensor -
40 Millimetre
Housing material -
Other
Interface type -
None
Length of sensor -
67 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
40 Millimetre
Switching frequency -
5 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Connector M12
Type of switch function -
Anticoincidence
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
40 Millimetre
Festo

Availability Available to order

£2.23
