1SBH136001R2244

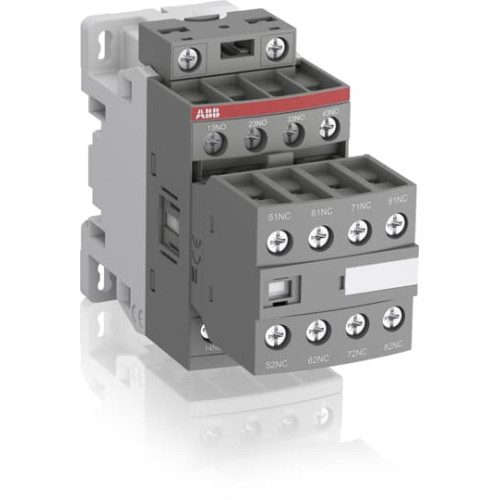

NFZ44E-22 48-130V50/60HZ-DC Contactor Relay

Manufacturer's No: NFZ44E-22     Manufacturer: ABB
NFZ44E-22 48-130V50/60HZ-DC Contactor Relay

Availability Back Order

£131.46
  • NFZ44E-22 48-130V50/60HZ-DC Contactor Relay
  • Electronic coil interface accepts control voltages between 24-250 V 50/60 Hz or 12-250 V DC
  • One coil covers various control voltages globally without needing a coil change
  • Direct control by PLC-output ? 24 V DC 500 mA
  • Reduced holding coil consumption
  • Withstands short voltage dips and sags between 24-250 V 50/60 Hz
  • Built-in surge protection, no need for additional surge suppressors
  • 8-pole contactor relays with front-mounted auxiliary contact block
  • Mechanically-linked auxiliary contacts compliant with IEC 60947-5-1
  • AC or DC operated control circuit

Read more

  • Wide range of accessories available


Product

Manufacturer Material ID -
NFZ44E-22
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Connection type auxiliary circuit -
Screw connection
Depth -
110.5 Millimetre
Height -
86 Millimetre
Mounting method -
DIN-rail/screw
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally closed contact, delayed switching -
0
Number of auxiliary contacts as normally open contact -
4
Number of auxiliary contacts as normally open contact, leading -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
6 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current -
3 Ampere
Rated operation current Ie, 400 V -
3 Ampere
Rated switch current -
4 Ampere
Voltage type (operating voltage) -
AC
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability Back Order

£131.46
