1SBH136060R2262

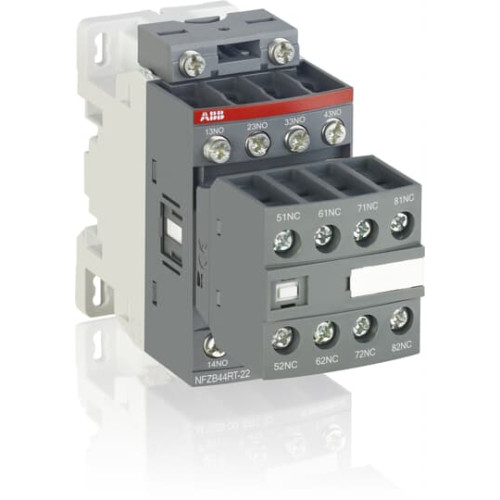

NFZB62ERT-22 48-130V50/60HZ-DC Contactor Relay

Manufacturer's No: NFZB62ERT-22     Manufacturer: ABB
NFZB62ERT-22 48-130V50/60HZ-DC Contactor Relay

Availability On Request

£155.97
  • NFZB62ERT-22 48-130V50/60HZ-DC Contactor Relay
  • Complies with latest railway rolling stock standards
  • Suitable for installation in passengers or driver cabins of trains operating in tunnels or undergrounds
  • Used for switching auxiliary and control circuits
  • Screw terminals for connection with ring tongue ferrules
  • Non-detachable screw with conic washer on auxiliary terminals for secure cable tightening
  • Compact design with reduced dimensions and side-by-side mounting requiring less width
  • Meets IEC 60947-5-1, IEC 60077-1/-2, EN 50155 standards
  • Shocks and vibration withstand conforming to IEC 61373 cat. 1, class B
  • Electronic coil interface accepts wide DC control voltage range

Read more

  • Compliant with European standard EN 45545-2 for fire and smoke behavior
  • 68% less coil energy consumption
  • Mechanically-linked auxiliary contacts compliant with IEC 60947-5-1 Annex L
  • Wide range of auxiliary contact blocks for front and side mounting


Product

Manufacturer Material ID -
NFZB62ERT-22
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Connection type auxiliary circuit -
Screw connection
Depth -
86 Millimetre
Height -
86 Millimetre
Mounting method -
DIN-rail/screw
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally closed contact, delayed switching -
0
Number of auxiliary contacts as normally open contact -
6
Number of auxiliary contacts as normally open contact, leading -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
6 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current -
3 Ampere
Rated operation current Ie, 400 V -
3 Ampere
Rated switch current -
4 Ampere
Voltage type (operating voltage) -
AC
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability On Request

£155.97
