Inductive Sensor, With Increased Temperature Range

Manufacturer's No: NI15-EM30-AP6/S907     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

POA
  • Inductive sensor
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 15 mm
  • Temperature range up to +160°C

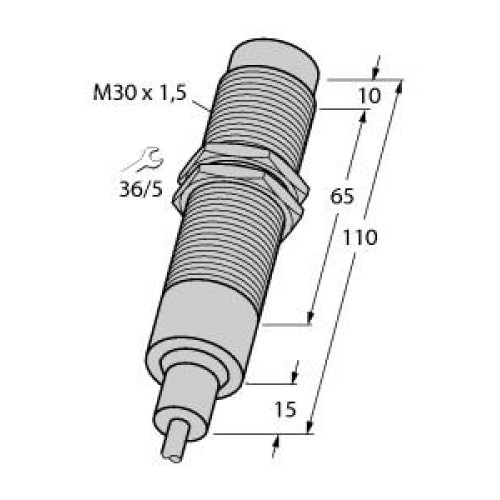

  • Threaded barrel: M30 x 1.5, stainless steel 1.4571
  • Non-flush design
  • DC 3-wire, NO contact, PNP output
  • Cable length: 2 m
  • Cable connection


Product

Manufacturer Material ID -
NI15-EM30-AP6/S907
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
110 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
15 Millimetre
Switching frequency -
200 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
