1440012 {T}

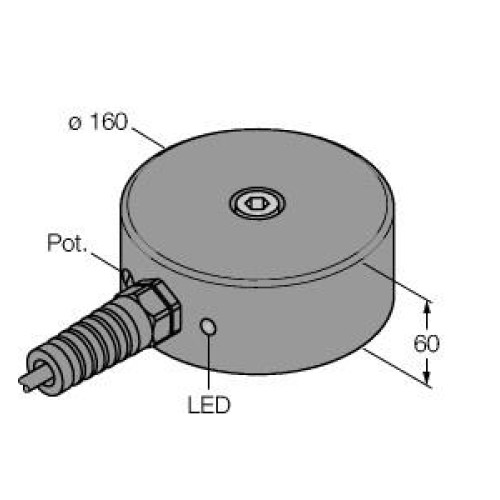

Inductive Sensor, With Increased Temperature Range, Operating voltage 10…55

Manufacturer's No: NI100-Q160-AP44X/S120     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range, Operating voltage 10…55

Availability Available to order

£734.40
  • Inductive Sensor
  • Operating Voltage: 10-55 VDC
  • Rated Switching Distance: 100 mm
  • Non-flush
  • Cable Length: 2 m
  • Diameter: 160 mm
  • Height: 60 mm
  • Active Face on Top
  • Material: Plastic (PPO)
  • Sensitivity Adjusted via Potentiometer

Read more

  • Temperature Range: Up to +120°C
  • Output: PNP NO Contact
  • Connection: Cable
  • DC 3-Wire


Product

Manufacturer Material ID -
NI100-Q160-AP44X/S120
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
60 Millimetre
Housing material -
Plastic
Length of sensor -
160 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
100 Millimetre
Switching frequency -
50 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
160 Millimetre
Turck Banner

Availability Available to order

£734.40
