4281413 {T}

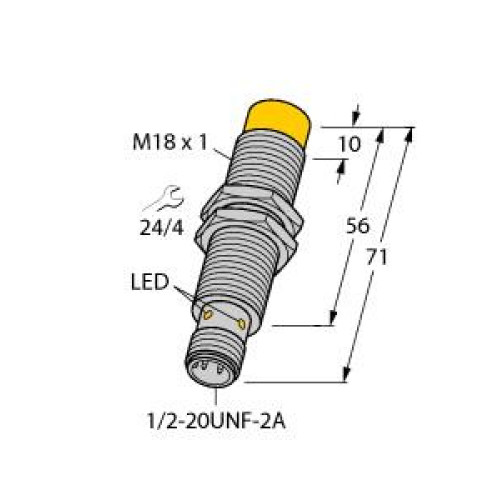

Inductive Sensor, Operating voltage 20…250 VAC / 10…300 VDC

Manufacturer's No: NI12U-G18-ADZ30X2-B3331     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage 20…250 VAC / 10…300 VDC

Availability Available to order

£211.68
  • Inductive Sensor
  • Operating Voltage: 20-250 VAC / 10-300 VDC
  • Rated Switching Distance: 12 mm
  • Non-flush
  • Threaded Barrel: M18 x 1, Chrome-plated Brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended Temperature Range
  • High Switching Frequency

Read more

  • Contact Type: NO
  • AC 2-wire: 20-250 VAC
  • DC 2-wire: 10-300 VDC
  • Connector: 1/2" Male Connector


Product

Manufacturer Material ID -
NI12U-G18-ADZ30X2-B3331
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
71 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
12 Millimetre
Switching frequency -
10 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Voltage type -
AC/DC
Turck Banner

Availability Available to order

£211.68
