4617210 {T}

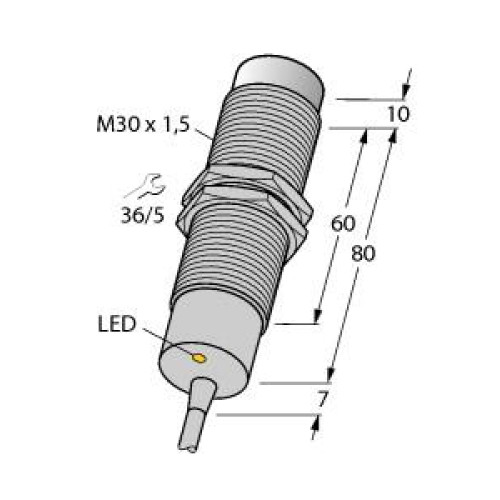

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: NI15-M30-AP6X/S120     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability Available to order

£173.21
  • Inductive sensor
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 15 mm
  • Non-flush type
  • M30 x 1.5 threaded tube made of chrome-plated brass
  • Temperature range up to +120°C
  • DC 3-wire configuration
  • Normally open (NO) contact
  • PNP output
  • Cable length: 2 meters

Read more

  • Cable connection


Product

Manufacturer Material ID -
NI15-M30-AP6X/S120
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
97 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
15 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability Available to order

£173.21
