1340123

Inductive Sensor, With Extended Temperature Range

Manufacturer's No: NI20-CP40-FZ3X2/S97     Manufacturer: Turck Banner
Inductive Sensor, With Extended Temperature Range

Availability On Request

£235.50
  • Inductive sensor with extended temperature range
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 20 mm

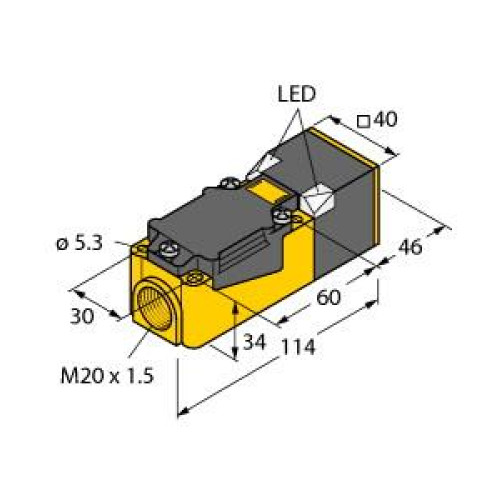

  • Non-flush rectangular design with a height of 40 mm
  • Variable orientation of active face in 9 directions
  • Material: Plastic (PBT-GF30-V0)
  • High luminance corner LEDs for visibility
  • Optimum view of supply voltage and switching state from any position
  • Temperature range: Up to -40°C
  • AC 2-wire: 20-250 VAC

Read more

  • DC 2-wire: 10-300 VDC
  • NC/NO programmable
  • Terminal chamber for easy installation


Product

Manufacturer Material ID -
NI20-CP40-FZ3X2/S97
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
20 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Programmable/configurable
Voltage type -
AC
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£235.50
