1582401

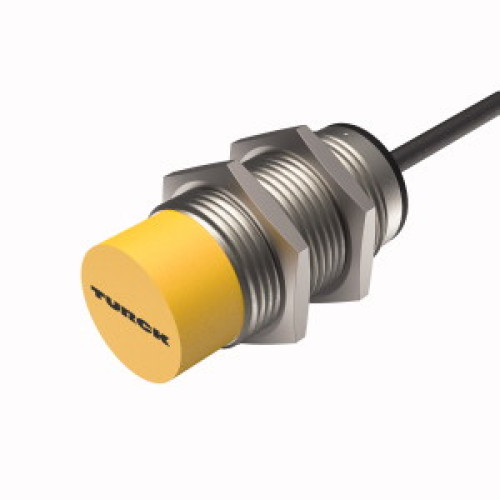

Inductive Sensor

Manufacturer's No: NI20U-M30-VP4X     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£132.48
  • Inductive Sensor
  • Operating Voltage: 10-65 VDC
  • Rated Switching Distance: 20 mm
  • Non-flush design
  • Cable Length: 2 m

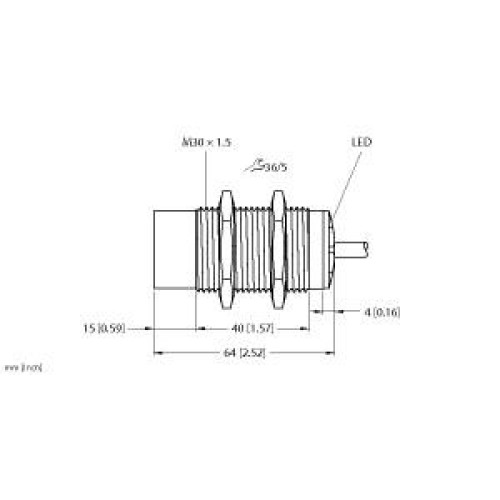

  • M30 x 1.5 threaded tube made of chrome-plated brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended temperature range

Read more

  • High switching frequency
  • DC 4-wire
  • Changeover contact with PNP output
  • Cable connection


Product

Manufacturer Material ID -
NI20U-M30-VP4X
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£132.48
