1003700

Inductive Sensor

Manufacturer's No: NI3-EG08K-Y1     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£55.22
  • Inductive Sensor
  • Rated switching distance: 3 mm
  • Non-flush design
  • Cable length: 2 m

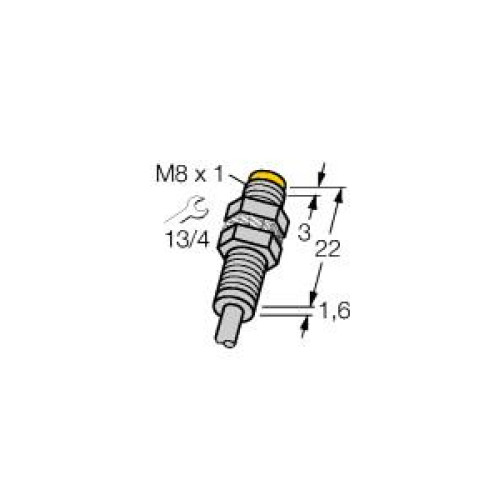

  • Threaded barrel: M8 x 1, made of stainless steel (1.4427 SO)
  • DC 2-wire sensor with nominal 8.2 VDC output
  • Output according to DIN EN 60947-5-6 (NAMUR standard)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20

Read more

  • SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
NI3-EG08K-Y1
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
8 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Metal
Length of sensor -
23.6 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
3 Millimetre
Switching frequency -
5000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability On Request

£55.22
