4280410

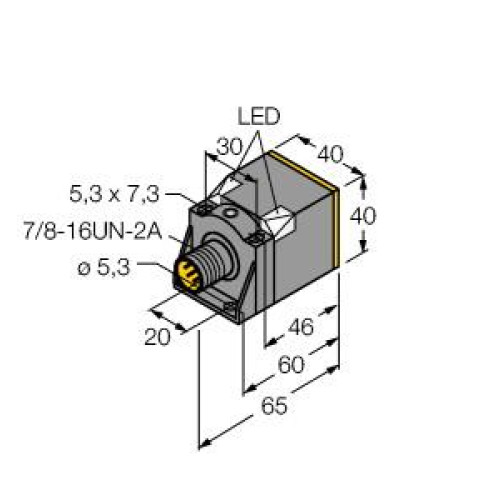

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI35U-CK40-ADZ30X2-B1131     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£150.20
  • Inductive sensor with extended switching distance
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 35 mm
  • Non-flush rectangular design with a height of 40 mm
  • Variable orientation of active face in 5 directions
  • Material: Plastic (PBT-GF30-V0)
  • Compatible only with the included plastic clip BS4-CK40
  • Factor 1 for all metals
  • Protection class: IP68
  • Large coverage and resistant to magnetic fields

Read more

  • Extended temperature range
  • High switching frequency
  • AC 2-wire: 20-250 VAC
  • DC 2-wire: 10-300 VDC
  • Normally open (NO) contact
  • Equipped with a 7/8" male connector


Product

Manufacturer Material ID -
NI35U-CK40-ADZ30X2-B1131
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
65 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
35 Millimetre
Switching frequency -
10 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Voltage type -
AC/DC
Width sensor -
40 Millimetre
