1051003

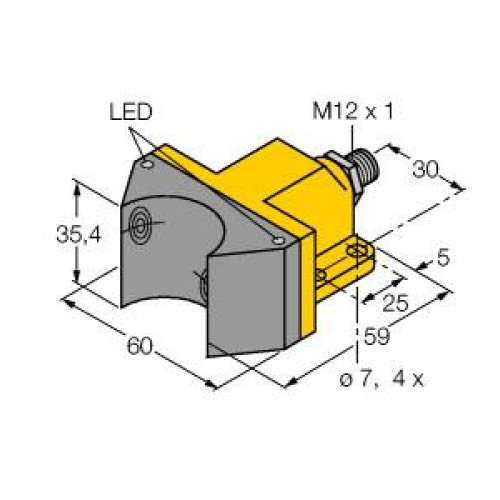

Inductive Sensor, For Rotary Actuators

Manufacturer's No: NI4-DSU35-2Y1X2-H1140     Manufacturer: Turck Banner
Inductive Sensor, For Rotary Actuators

Availability On Request

£161.04
  • Inductive sensor designed for rotary actuators
  • Rated switching distance: 4 mm
  • Non-flush rectangular housing model DSU35 made of Plastic PP-GF30-VO
  • Two outputs for monitoring rotary actuator position
  • Compatible with all standard actuators
  • DC 2-wire, nominal 8.2 VDC
  • 2 outputs according to DIN EN 60947-5-6 (NAMUR) standards
  • M12 x 1 male connector
  • ATEX category II 2 G, Ex Zone 1 and ATEX category II 1 D, Ex Zone 20 certified
  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c at HFT0

Read more

  • SIL 3 (All Demand Mode) according to IEC 61508, PL e with redundant configuration HFT1


Product

Manufacturer Material ID -
NI4-DSU35-2Y1X2-H1140
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Height of sensor -
35.4 Millimetre
Housing material -
Plastic
Length of sensor -
59 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
4 Millimetre
Switching frequency -
50 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
60 Millimetre
Turck Banner

Availability On Request

£161.04
