4290002 {T}

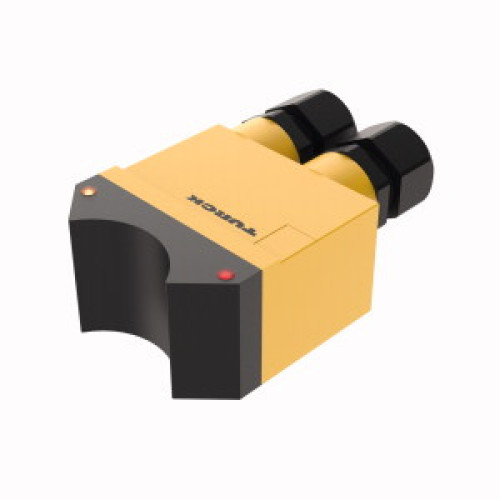

Inductive Sensor, For Rotary Actuators, Operating voltage 20…250 VAC

Manufacturer's No: NI4-DSU35TC-2ADZ30X2     Manufacturer: Turck Banner
Inductive Sensor, For Rotary Actuators, Operating voltage 20…250 VAC

Availability Available to order

£255.15
  • Inductive Sensor for Rotary Actuators
  • Operating Voltage: 20-250 VAC / 10-300 VDC
  • Rated Switching Distance: 4 mm
  • Non-flush Rectangular Housing DSU35 made of Plastic (PP-GF30-VO)
  • Two Outputs for monitoring rotary actuator position
  • Mounts on all standard actuators
  • AC 4-wire: 20-250 VAC, DC 4-wire: 10-300 VDC
  • 2 Normally Open Contacts
  • Terminal Chamber


Product

Manufacturer Material ID -
NI4-DSU35TC-2ADZ30X2
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

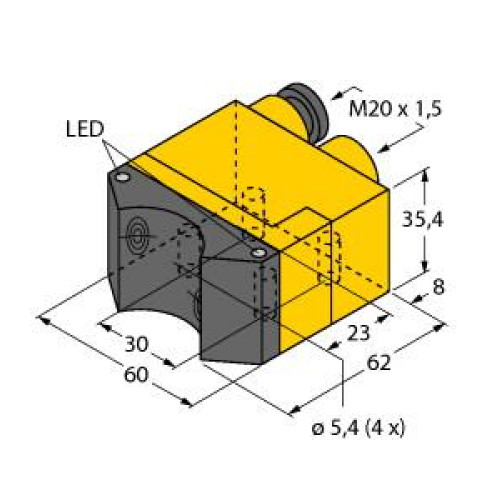

Technical Specification

Coating housing -
Other
Height of sensor -
35.4 Millimetre
Housing material -
Plastic
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
4 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Normally open contact
Voltage type -
AC/DC
Width sensor -
60 Millimetre
Turck Banner

Availability Available to order

£255.15
