1302201 {T}

Inductive Sensor, With Increased Temperature Range, Operating voltage 20…250

Manufacturer's No: NI4-S12-AZ31X/S100     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range, Operating voltage 20…250

Availability Available to order

£243.14
  • Inductive sensor
  • Increased temperature range up to +100°C
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 4 mm
  • Non-flush design
  • Cable length: 2 meters

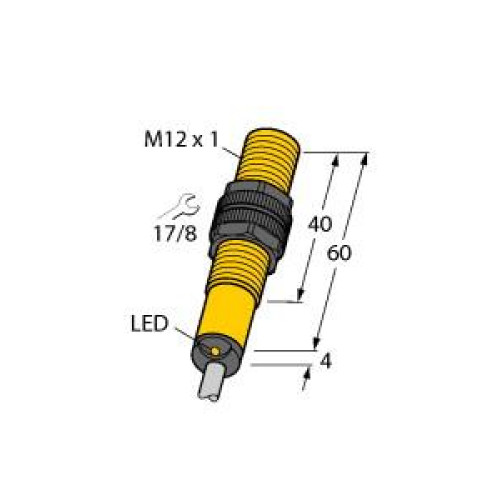

  • Threaded barrel: M12 x 1
  • Material: Plastic (PA12-GF30)
  • AC 2-wire: 20-250 VDC
  • DC 2-wire: 10-300 VDC

Read more

  • Normally open (NO) contact
  • Cable connection


Product

Manufacturer Material ID -
NI4-S12-AZ31X/S100
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Plastic
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
4 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Voltage type -
AC
Turck Banner

Availability Available to order

£243.14
