Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI40U-CP40-VN4X2     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£161.16
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-65 VDC
  • Rated switching distance: 40 mm

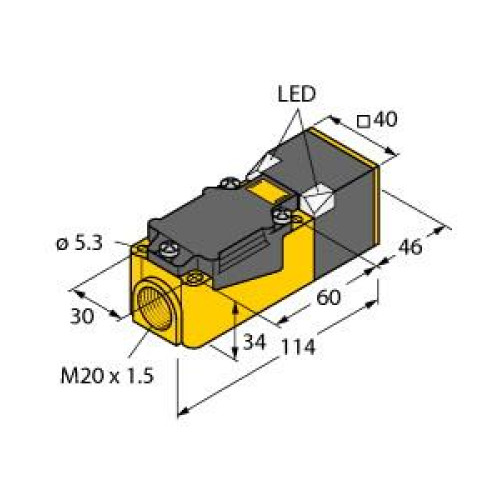

  • Non-flush, rectangular design with a height of 40 mm
  • Variable orientation of active face in 9 directions
  • Material: Plastic (PBT-GF30-V0)
  • High luminance corner LEDs for optimum visibility
  • Factor 1 for all metals
  • Protection class: IP68
  • Resistant to magnetic fields

Read more

  • Extended temperature range
  • High switching frequency
  • DC 4-wire configuration
  • Changeover contact, NPN output
  • Terminal chamber for easy installation


Product

Manufacturer Material ID -
NI40U-CP40-VN4X2
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
40 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Change-over contact
Type of switching output -
NPN
Voltage type -
DC
Width sensor -
40 Millimetre
