4600630

Inductive Sensor

Manufacturer's No: NI4U-EG08-AN6X-V1131     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£93.08
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 4 mm

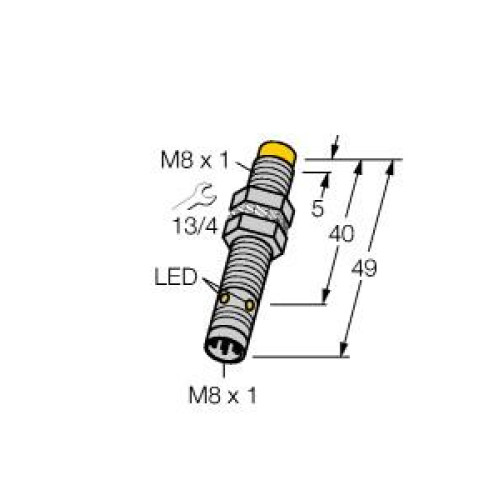

  • Non-flush, Threaded Barrel, M8 x 1, Stainless Steel 1.4427 SO
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 3-wire, 10-30 VDC

Read more

  • NO contact, NPN output
  • M8 x 1 male connector


Product

Manufacturer Material ID -
NI4U-EG08-AN6X-V1131
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
8 Millimetre
Housing material -
Metal
Length of sensor -
49 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
4 Millimetre
Switching frequency -
2000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
NPN
Voltage type -
DC
Turck Banner

Availability On Request

£93.08
