4012008

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: NI5-EG12-Y1X/S100 7M     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£111.95
  • Inductive sensor with increased temperature range
  • Rated switching distance: 5 mm

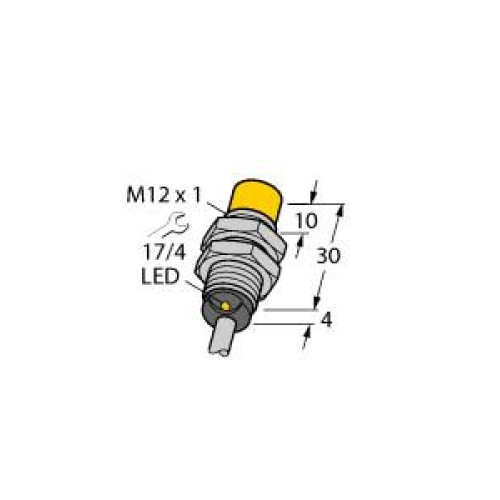

  • Non-flush design with threaded barrel, M12 x 1, made of stainless steel 1.4301
  • Cable length: 7 m
  • Operating temperatures up to +100°C
  • DC 2-wire sensor with nominal 8.2 VDC output according to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex Zone 0 for temperatures up to +80°C
  • ATEX category II 2 G, Ex Zone 1
  • ATEX category II 1 D, Ex Zone 20 for temperatures up to +70°C

Read more

  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 at HFT0
  • SIL 3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HTF1


Product

Manufacturer Material ID -
NI5-EG12-Y1X/S100 7M
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Metal
Length of sensor -
34 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
5 Millimetre
Switching frequency -
2000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
