4012140 {T}

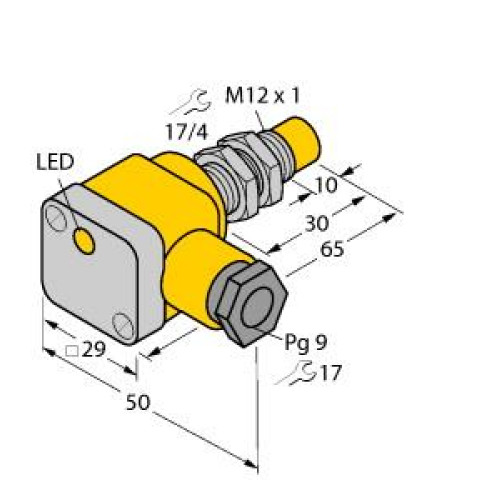

Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Manufacturer's No: NI5-EG12SK-Y1X     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Availability Available to order

£90.99
  • Inductive Sensor
  • Rated switching distance: 5 mm
  • Non-flush, Threaded barrel, M12 x 1, Stainless steel 1.4301
  • DC 2-wire, 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
NI5-EG12SK-Y1X
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Metal
Length of sensor -
65 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
5 Millimetre
Switching frequency -
2000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability Available to order

£90.99
