1535545

Inductive Sensor, With Analog Output

Manufacturer's No: NI50-Q80-LIU-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£354.96
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 10 mm to 50 mm

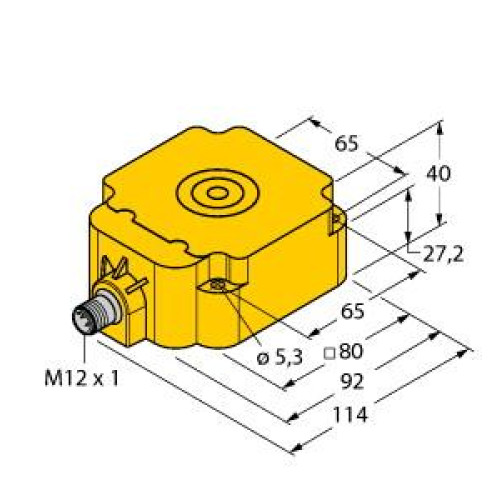

  • Non-flush rectangular sensor with a height of 40 mm
  • Active face on top
  • Material: Plastic (PBT-GF30-V0)
  • 4-wire sensor
  • Analog output: 0-10 V and 0-20 mA
  • Connector: M12 x 1 male connector


Product

Manufacturer Material ID -
NI50-Q80-LIU-H1141
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
92 Millimetre
Limiting frequency -
30 Hertz
Measuring range length -
10 Millimetre
Mechanical mounting condition for sensor -
Not flat
Operating voltage -
15 Volt
Relative linearity deflection -
5 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Width sensor -
80 Millimetre
