1625831

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI50U-CP40-AP6X2     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£158.10
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 50 mm

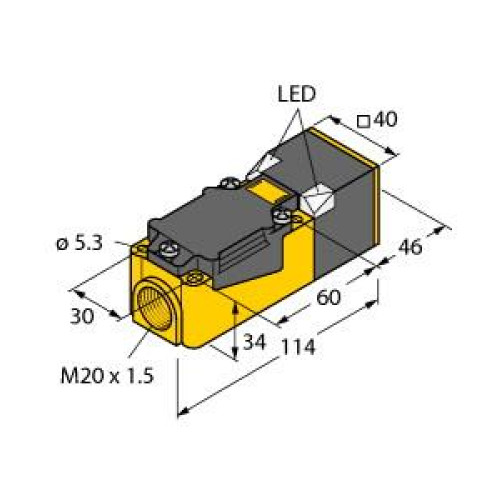

  • Non-flush rectangular design with a height of 40 mm
  • Active face can be oriented in 9 directions
  • Made of plastic (PBT-GF30-V0)
  • Features high luminance corner LEDs
  • Optimal visibility of supply voltage and switching state from any angle
  • Factor 1 sensitivity for all metals
  • Increased switching distance for enhanced performance

Read more

  • IP68 protection class for durability
  • Resistant to magnetic fields
  • Auto-compensation feature protects against pre-damping
  • Partially embeddable design
  • DC 3-wire configuration
  • NO contact with PNP output
  • Terminal chamber for easy installation


Product

Manufacturer Material ID -
NI50U-CP40-AP6X2
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
50 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£158.10
