4635801

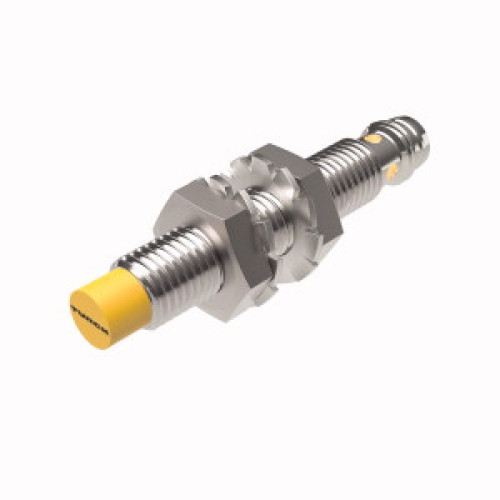

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI6U-EG08-AP6X-V1131     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£106.22
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 6 mm
  • Non-flush design with threaded barrel (M8 x 1) made of stainless steel (1.4427 SO)
  • Factor 1 for all metals
  • Protection class: IP68
  • Resistant to magnetic fields
  • Large switching distance and high switching frequency
  • Integrated protection against predamping
  • Minimal metal-free spaces

Read more

  • DC 3-wire configuration
  • NO contact with PNP output
  • Male connector: M8 x 1


Product

Manufacturer Material ID -
NI6U-EG08-AP6X-V1131
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
8 Millimetre
Housing material -
Metal
Length of sensor -
49 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
6 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£106.22
