4280900

Inductive Sensor, With Increased Switching Distance

Manufacturer's No: NI75U-CP80-FDZ30X2     Manufacturer: Turck Banner
Inductive Sensor, With Increased Switching Distance

Availability On Request

£427.01
  • Inductive sensor with increased switching distance
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 75 mm

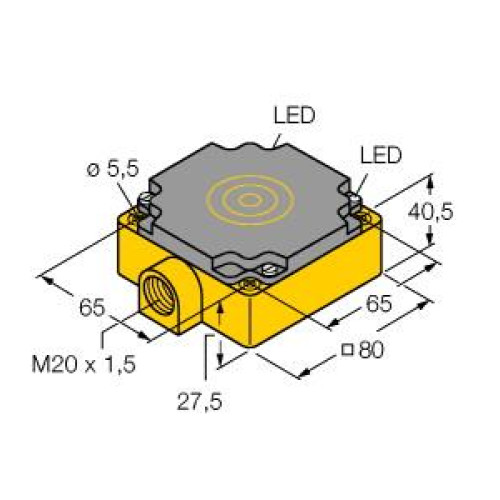

  • Non-flush rectangular design with a height of 41 mm
  • Material: Plastic (PBT-GF30-V0)
  • Factor 1 for all metals
  • Resistant to magnetic fields
  • Large coverage area
  • Extended temperature range
  • High switching frequency

Read more

  • AC 2-wire: 20-250 VAC
  • DC 2-wire: 10-300 VDC
  • NC/NO programmable
  • Terminal chamber


Product

Manufacturer Material ID -
NI75U-CP80-FDZ30X2
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Height of sensor -
41 Millimetre
Housing material -
Plastic
Length of sensor -
80 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
75 Millimetre
Switching frequency -
10 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Programmable/configurable
Voltage type -
AC/DC
Width sensor -
80 Millimetre
Turck Banner

Availability On Request

£427.01
