4411241 {T}

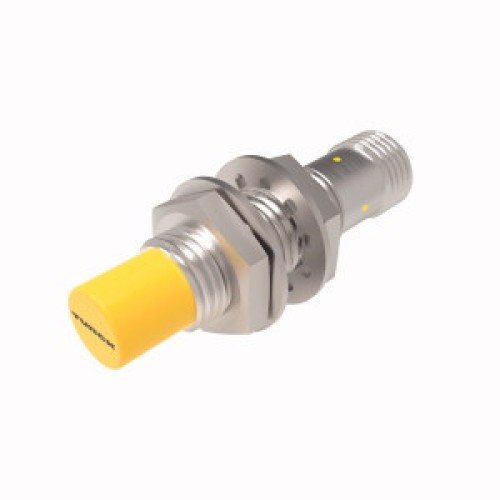

Inductive Sensor, With Increased Switching Distance, Operating voltage 10…65

Manufacturer's No: NI8-M12-AD4X-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Increased Switching Distance, Operating voltage 10…65

Availability Available to order

£97.34
  • Inductive sensor with increased switching distance
  • Operating voltage: 10-65 VDC
  • Rated switching distance: 8 mm

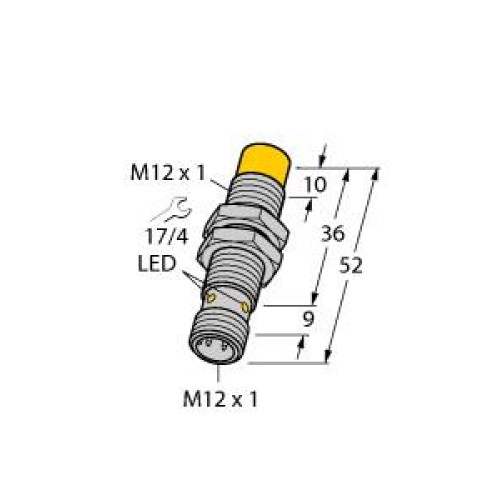

  • Non-flush M12 x 1 threaded barrel made of chrome-plated brass
  • Large sensing range
  • DC 2-wire sensor with NO contact
  • M12 x 1 male connector


Product

Manufacturer Material ID -
NI8-M12-AD4X-H1141
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
8 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Voltage type -
DC
Turck Banner

Availability Available to order

£97.34
