3058620

Photoelectric Sensor, Retroreflective Laser Sensor

Manufacturer's No: PD45VP6LLP     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Laser Sensor

Availability On Request

£686.00
  • Photoelectric Sensor: Retroreflective Laser Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 10.6 m
  • Cable Length: 2 m
  • Laser sensors with high excess gain
  • BRT-36X40BM reflector included
  • Sensitivity adjusted via potentiometer
  • Light and dark operation


Product

Manufacturer Material ID -
PD45VP6LLP
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP54

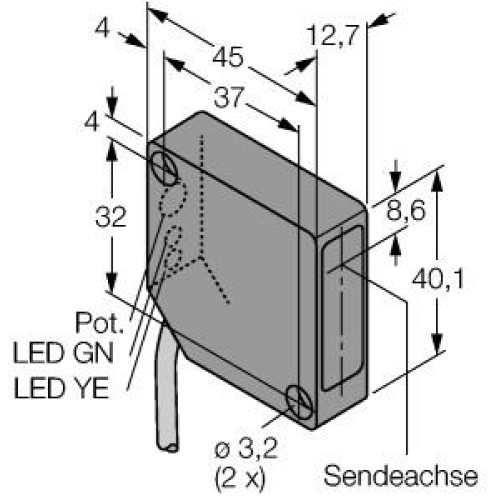

Height of sensor -
40.6 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
45.6 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
10600 Millimetre
Rated switching distance -
10600 Millimetre
Reaction time -
0.2 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.7 Millimetre
Turck Banner

Availability On Request

£686.00
