1SAM201906R1124

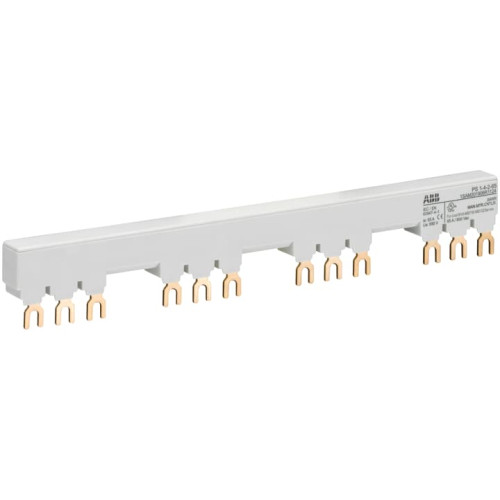

PS1-4-2-65 3-phase busbar for 4 MS116 / MS132 with 2 HK/SK, Ie=65A

Manufacturer's No: PS1-4-2-65     Manufacturer: ABB
PS1-4-2-65 3-phase busbar for 4 MS116 / MS132 with 2 HK/SK, Ie=65A

Availability Available to order

£20.78
  • Model: PS1-4-2-65
  • Type: 3-phase busbar
  • Compatibility: 4 MS116/MS132 with 2 HK/SK
  • Rated Current: 65A
  • Features quick and safe connection for manual motor starters
  • Cost-effective solution for connecting motor starters with auxiliary contacts


Product

Manufacturer Material ID -
PS1-4-2-65
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of modular spacings -
13
Pitch dimensions -
14 Millimetre
Rated short-time withstand current lcw -
100 kiloampere
Colour -
Grey
Conditioned rated short-circuit current Iq -
100 kiloampere
Cross section -
8 Square millimetre
Insulated -
Length -
230.5 Millimetre
Max. rated operation voltage Ue -
690 Volt
Module width -
14 Millimetre
Number of phases -
3
Number of poles -
3
Rated permanent current Iu -
65 Ampere
Rated surge voltage -
6 Kilovolt
Suitable for devices with auxiliary switch -
Suitable for number of devices -
4
Type of electric connection -
Fork
Width in number of modular spacings -
13.1
ABB

Availability Available to order

£20.78
