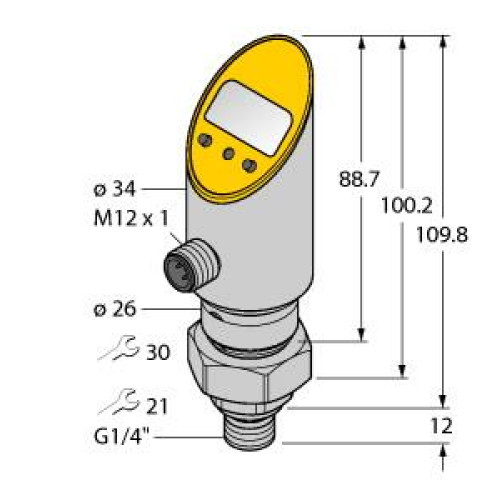

Pressure Sensor (Rotatable), With Analog Output and PNP/NPN Transistor Switching

Manufacturer's No: PS100R-504-LI2UPN8X-H1141     Manufacturer: Turck Banner
Pressure Sensor (Rotatable), With Analog Output and PNP/NPN Transistor Switching

Availability On Request

£578.95
  • Pressure sensor with rotatable housing
  • Analog output and PNP/NPN transistor switching output
  • Output 2 can be reprogrammed as switching output
  • Operating voltage: 18 to 30 VDC
  • Rotatable housing after plugging process connection
  • Reading of adjusted values without tool
  • Recessed pushbutton and keylock for secure programming
  • Permanent indication of pressure in bar, psi, kPa, MPa, misc
  • Peak pressure memory feature
  • Pressure range: 0 to 100 bar rel.

Follow-up article



Product

Manufacturer Material ID -
PS100R-504-LI2UPN8X-H1141
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Adjustable current range -
4 Ampere
Bursting pressure -
420 Pressure
Degree of protection (IP rating) -
IP67
End setting -
100000 Hecto Pascal
End value measuring range pressure -
10000000 Pascal
Engaging pressure -
0 Pressure
Initial setting -
0 Hecto Pascal
Initial value measuring range pressure -
0 Pascal
Max. test pressure -
420 Pressure
Medium temperature -
-40 Degrees celsius
Rated voltage Ue at DC -
18 Volt
Switch off pressure -
100 Pressure
Type of electric connection -
Other
