630805

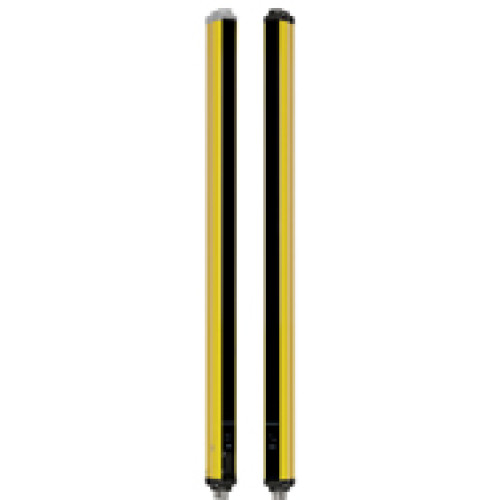

Safety light guard, Type 2, PL c, body protection, protected fieldheight800 mm, muting function, supply voltage 24 V, connector M1

Manufacturer's No: PSEN op2B-3-080/1     Manufacturer: Pilz
Safety light guard, Type 2, PL c, body protection, protected fieldheight800 mm, muting function, supply voltage 24 V, connector M12,transmitter: 4-pin and 5-pin, receiver: 5-pin and 8-pin,connection c

Availability On Request

£791.81
  • Safety Light Guard
  • Type 2
  • PL c
  • Body Protection
  • Protected Field Height: 800 mm
  • Muting Function
  • Supply Voltage: 24 V
  • Connector: M12
    • Transmitter: 4-pin and 5-pin
    • Receiver: 5-pin and 8-pin
  • Connection Cable Not Supplied with the Device

Accessories



Product

Manufacturer Material ID -
PSEN op2B-3-080/1
Net Weight -
4.10kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
0
Ambient temperature -
-10 Degrees celsius
Height -
953 Millimetre
Length -
41.2 Millimetre
Max. output current at protected output -
500 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
3
Number of protected semiconductor outputs -
2
Reaction time -
14 Millisecond
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
50 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width -
35 Millimetre
With muting function -
Pilz

Availability On Request

£791.81
