630807

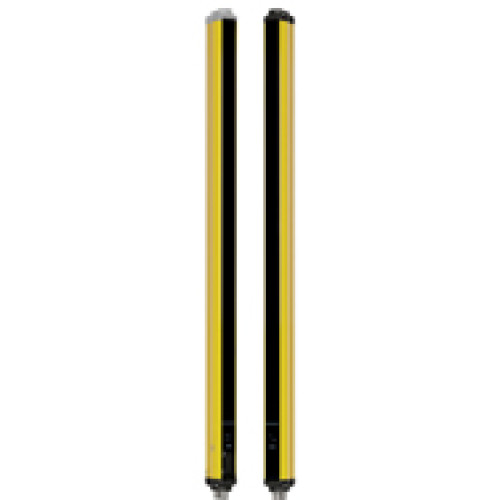

Safety light guard, Type 2, PL c, body protection, protected field heigh1200 mm, muting function, supply voltage 24 V, connectorM1

Manufacturer's No: PSEN op2B-4-120/1     Manufacturer: Pilz
Safety light guard, Type 2, PL c, body protection, protected field heigh1200 mm, muting function, supply voltage 24 V, connectorM12, transmitter: 4-pin and 5-pin, receiver: 5-pin and 8-pin,connection

Availability On Request

£1,022.45
  • Safety light guard
  • Type 2
  • PL c
  • Body protection
  • Protected field height: 1200 mm
  • Muting function
  • Supply voltage: 24 V
  • Connector: M12
  • Transmitter: 4-pin and 5-pin
  • Receiver: 5-pin and 8-pin

Read more

  • Connection cable not supplied with the device

Accessories



Product

Manufacturer Material ID -
PSEN op2B-4-120/1
Net Weight -
5.10kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
0
Ambient temperature -
-10 Degrees celsius
Height -
1353 Millimetre
Length -
41.2 Millimetre
Max. output current at protected output -
500 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
4
Number of protected semiconductor outputs -
2
Reaction time -
16 Millisecond
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
50 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width -
35 Millimetre
With muting function -
Pilz
