630802

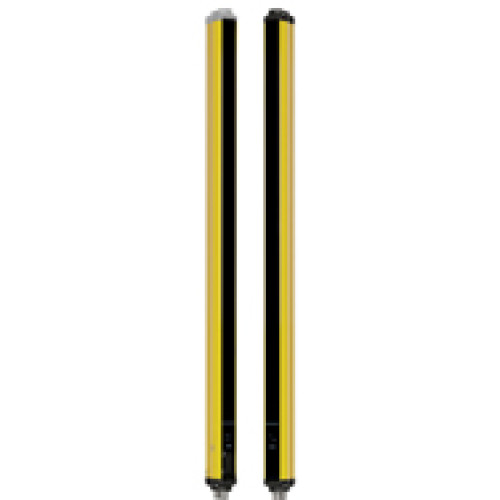

Safety light guard, Type 4, PL e, body protection, protected fieldheight900 mm, muting function, supply voltage 24 V, connector M1

Manufacturer's No: PSEN op4B-4-090/1     Manufacturer: Pilz
Safety light guard, Type 4, PL e, body protection, protected fieldheight900 mm, muting function, supply voltage 24 V, connector M12,transmitter: 4-pin and 5-pin, receiver: 5-pin and 8-pin,connection c

Availability On Request

£1,036.85
  • Safety Light Guard
  • Type 4
  • Performance Level: PL e
  • Body Protection
  • Protected Field Height: 900 mm
  • Muting Function
  • Supply Voltage: 24 V
  • Connector Type: M12
    • Transmitter: 4-pin and 5-pin
    • Receiver: 5-pin and 8-pin
  • Connection Cable Not Supplied with the Device

Accessories



Product

Manufacturer Material ID -
PSEN op4B-4-090/1
Net Weight -
6.08kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
0
Ambient temperature -
-10 Degrees celsius
Height -
1053 Millimetre
Length -
41.2 Millimetre
Max. output current at protected output -
500 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
4
Number of protected semiconductor outputs -
2
Reaction time -
16 Millisecond
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
50 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width -
35 Millimetre
With muting function -
Pilz

Availability On Request

£1,036.85
