630720

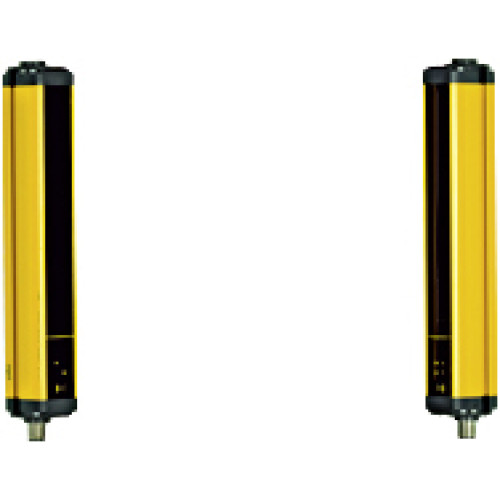

Safety light curtain, type 2, PL c, hand protection (resolution 30mm) Protected field height 150 mm, supply voltage 24 V, connecto

Manufacturer's No: PSEN op2H-s-30-015/1     Manufacturer: Pilz
Safety light curtain, type 2, PL c, hand protection (resolution 30mm) Protected field height 150 mm, supply voltage 24 V, connector M12, sender: 4-pin, receiver: 5-pin, Connection cable not supplied w

Availability On Request

£540.18
  • Safety light guard Type 2
  • Resolution: 30 mm
  • Protected field height: 150 mm
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter: 4-pin
  • Receiver: 5-pin
  • Connection cable not included

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN op2H-s-30-015/1
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pilz
Number of semiconductor outputs with signalling function -
0
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
233.3 Millimetre
Length of sensor -
36.9 Millimetre
Number of protected semiconductor outputs -
2
Reaction time -
8 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
150 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
19 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width sensor -
32.3 Millimetre
Pilz

Availability On Request

£540.18
