3051921

PVA Series: 100 Array - Receiver, Range: 2 m, Input: 12-30 V dc, Output: 1 NPN Programmable for LO/DO, M12 Pigtail QD

Manufacturer's No: PVA100N6RQ     Manufacturer: Turck Banner
PVA Series: 100 Array - Receiver, Range: 2 m, Input: 12-30 V dc, Output: 1 NPN Programmable for LO/DO, M12 Pigtail QD

Availability On Request

£312.13
  • Pick-to-Light system with Placement Sensor and Light Grid
  • Operating voltage: 12-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m

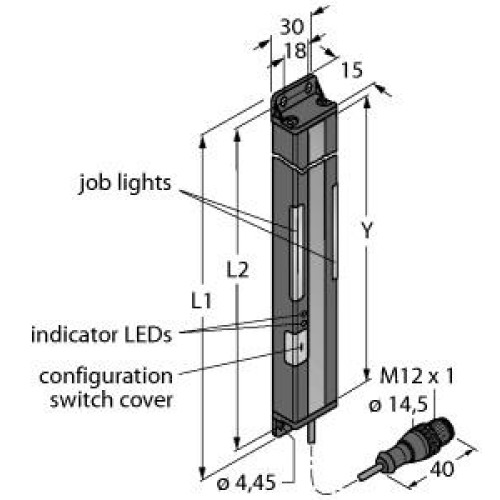

  • Total height: 137.8 mm
  • 5-beam system with beam spacing of 25 mm
  • Receiver with max. range of 2 m
  • Light/Dark operation with selectable frequency to prevent crosstalk
  • NPN switching output of the receiver
  • Input of operation request light: +24 VDC

Read more

  • Protection class: IP62


Product

Manufacturer Material ID -
PVA100N6RQ
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£312.13
