3051913

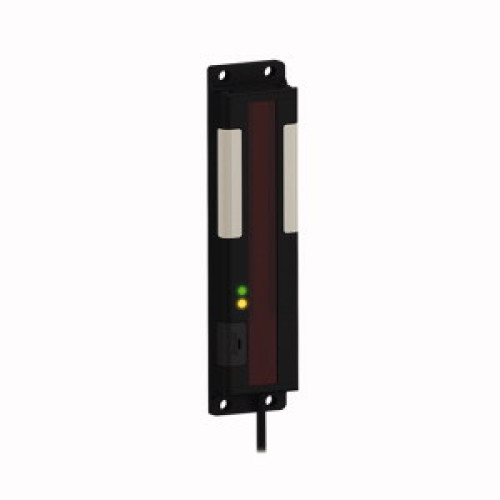

PVA Series: 100 Array - Emitter, Range: 2 m, Input: 12-30 V dc, Output: Not Applicable, 2 m M12 Pigtail QD

Manufacturer's No: PVA100P6EQ     Manufacturer: Turck Banner
PVA Series: 100 Array - Emitter, Range: 2 m, Input: 12-30 V dc, Output: Not Applicable, 2 m M12 Pigtail QD

Availability On Request

£312.13
  • Pick-to-Light system
  • Placement Sensor with Light Grid
  • Operating voltage: 12-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m

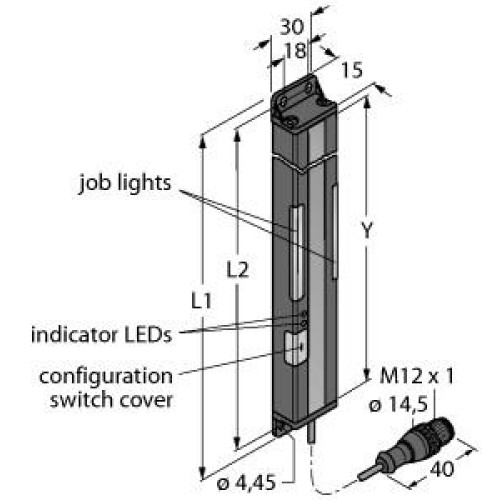

  • Total height: 137.8 mm
  • 5-beam system with beam spacing of 25 mm
  • Emitter with max. range of 2 m
  • Light/Dark operation
  • Selectable frequency for protection against crosstalk

Read more

  • Input of operation request light: +24 VDC
  • Protection class: IP62


Product

Manufacturer Material ID -
PVA100P6EQ
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£312.13
