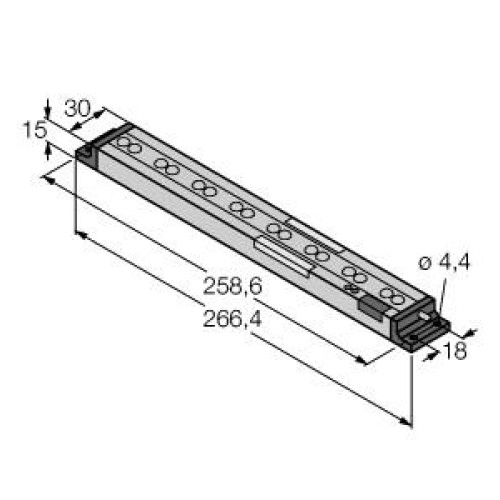

PVD Series: Parts Verification, 225 8 channel, Range, up to 2 m, Input: 12-30 V dc, Outputs: Selectable NPN/PNP, 9 m (30 ft) Integ

Manufacturer's No: PVD225 W/30'     Manufacturer: Turck Banner
PVD Series: Parts Verification, 225 8 channel, Range, up to 2 m, Input: 12-30 V dc, Outputs: Selectable NPN/PNP, 9 m (30 ft) Integral Cable

Availability On Request

£506.31
  • Pick-to-Light system
  • Placement Sensor with Light Grid
  • Operating voltage: 12-30 VDC
  • Max. range: 400 mm
  • Cable length: 9 m
  • 8-beam system with beam spacing of 28.6 mm
  • Scan field: 240 mm
  • Range: up to 2 m with reflector, up to 400 mm in diffuse mode
  • Protection class: IP62
  • Job light: green, Mispick indication: red

Read more

  • Non-actuated current consumption: < 20 mA, < 70 mA with activated job light
  • DIP switches for PNP/NPN switching output, NO/NC output, and work light adjustment
  • SMBPVA1 mounting bracket kit included
  • Reflector tape not included


Product

Manufacturer Material ID -
PVD225 W/30'
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£506.31
