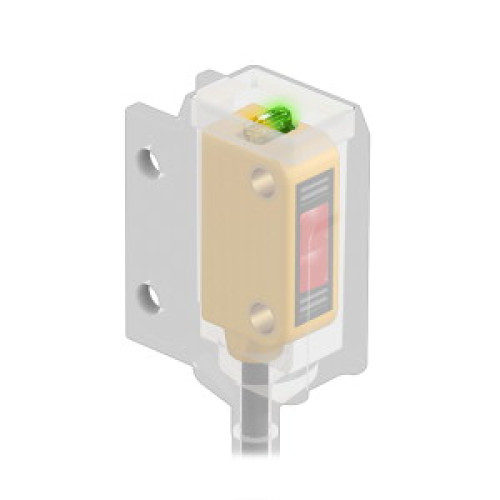

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

Manufacturer's No: Q126ECR     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

Availability Available to order

POA
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Size: Miniature
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m, PVC sheath
  • Protection Class: IP67
  • Sheath Material: Chemical-proof PFA
  • LED: All-round visible


Product

Manufacturer Material ID -
Q126ECR
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

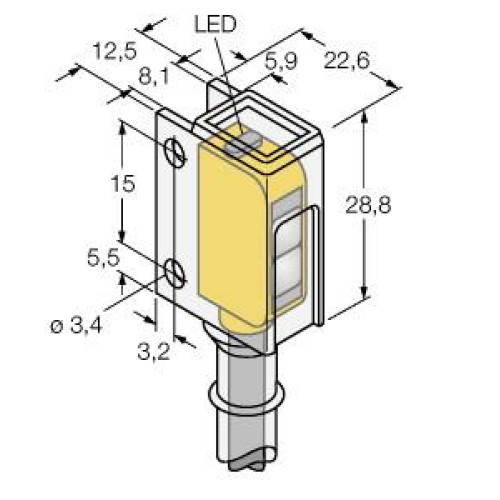

Height of sensor -
28.8 Millimetre
Housing material -
Plastic
Length of sensor -
22.6 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
640 Nanometre
Width sensor -
12.5 Millimetre
